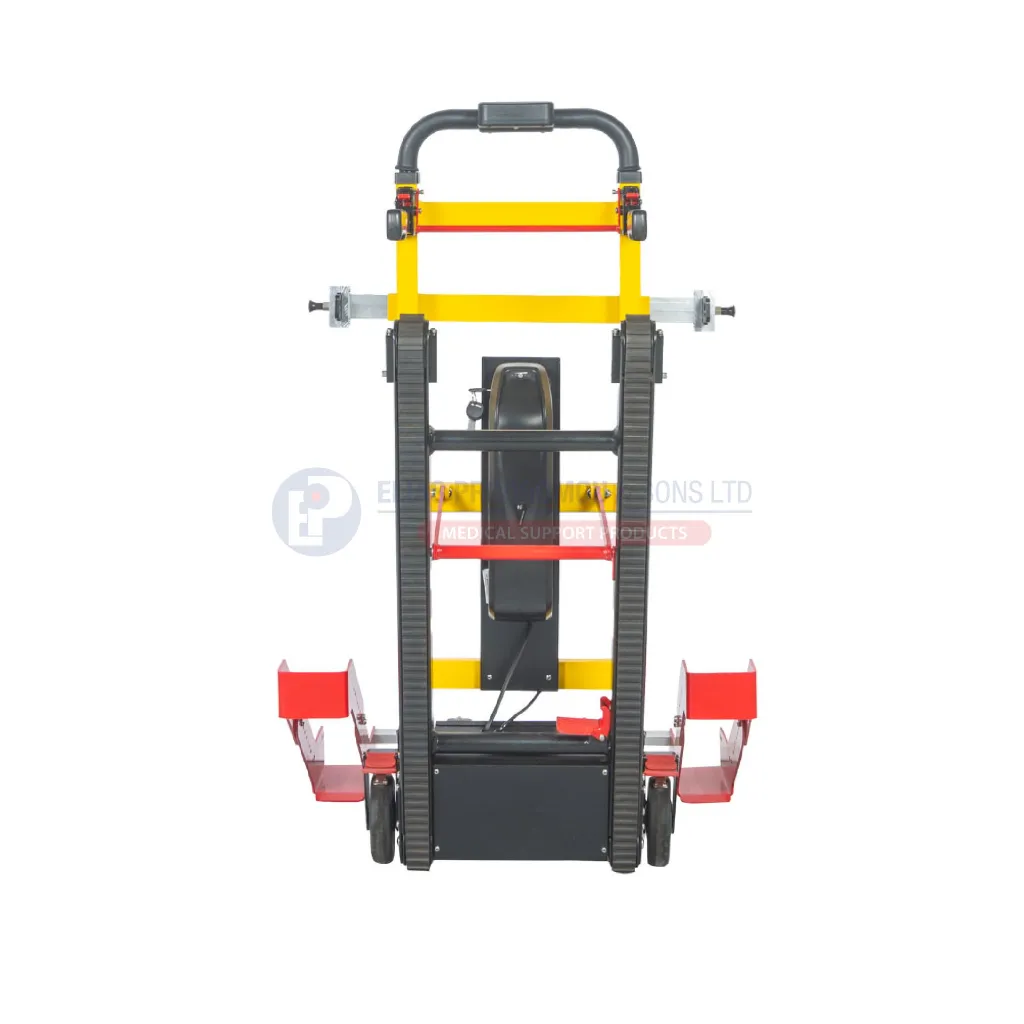

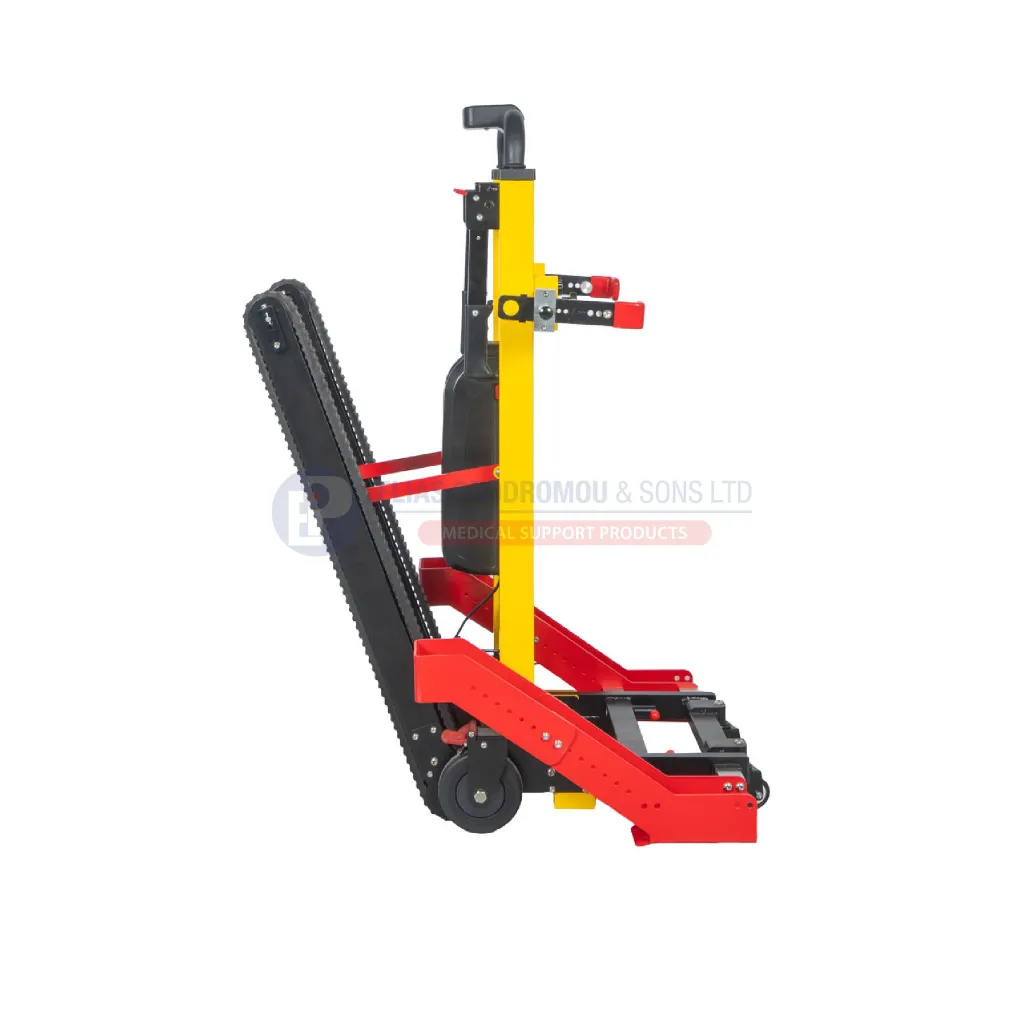

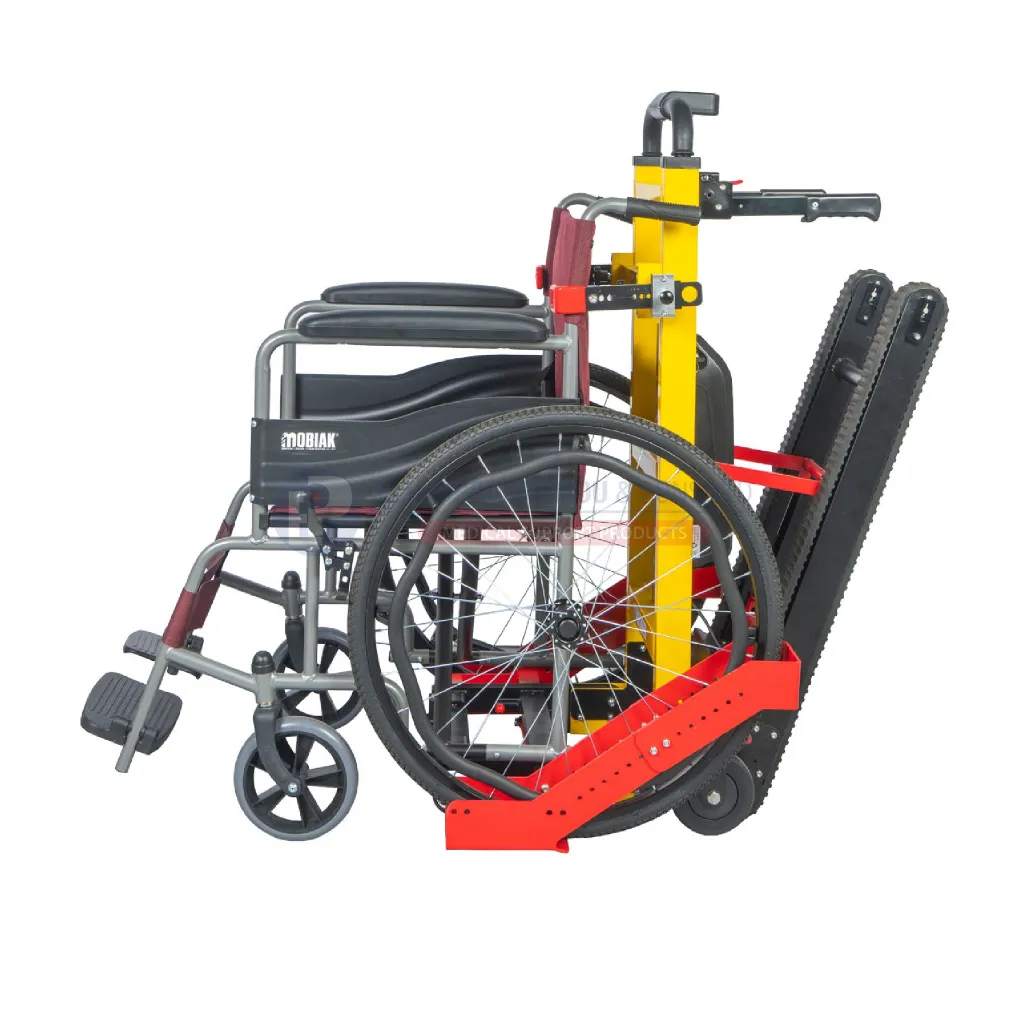

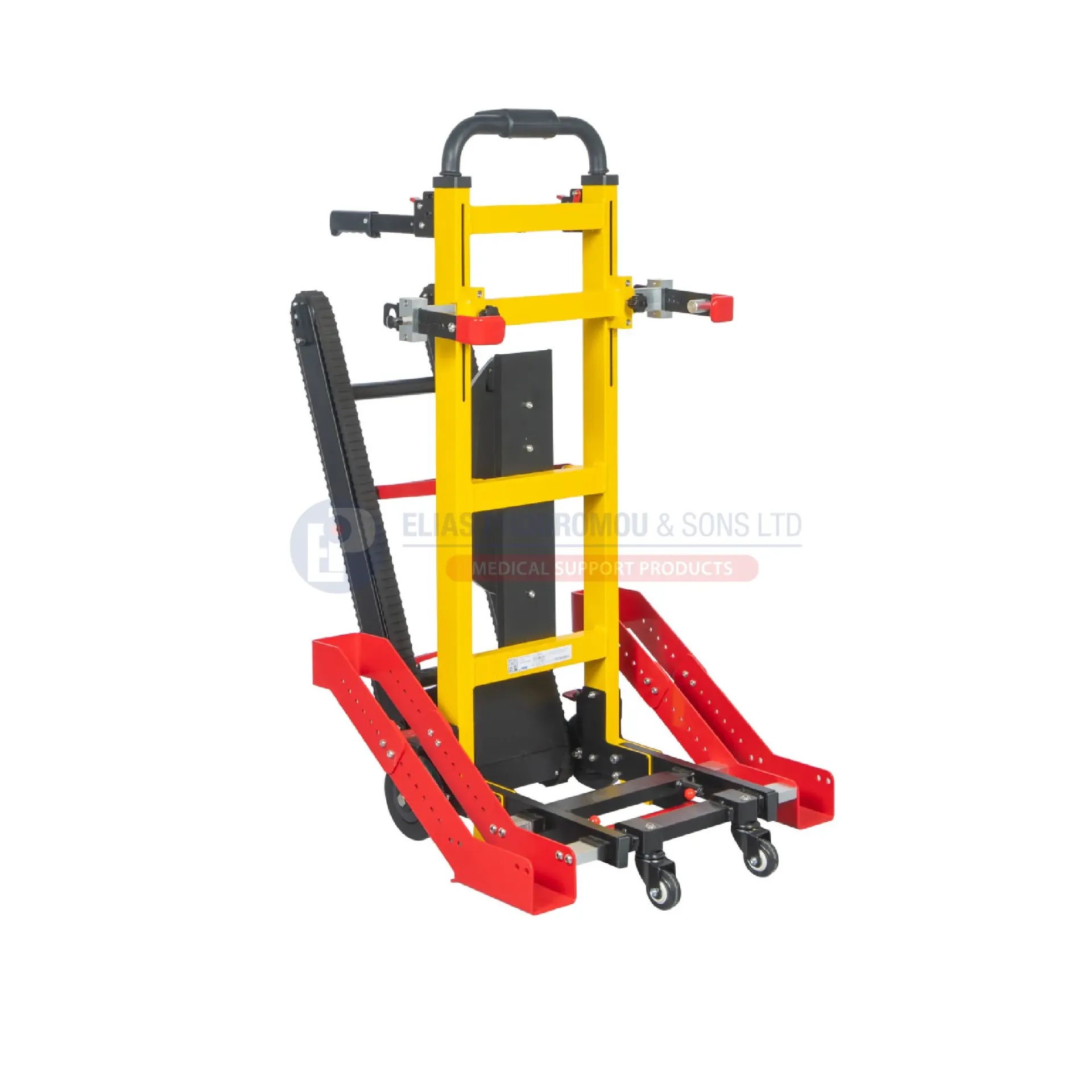

The Electric Stair Climbing Wheelchair Carrier is a high-performance emergency transport system designed specifically for safely moving wheelchair users up and down stairs. Equipped with an advanced motorized track system, it enables smooth, controlled, and secure stair navigation, significantly reducing operator effort.

Designed for professional emergency and medical use, this device allows rapid evacuation and patient transport in environments where elevators or ramps are unavailable. Its robust aluminum frame ensures durability while maintaining a relatively lightweight structure for easy handling and portability.

The system features adjustable width to accommodate different wheelchair sizes, along with a height-adjustable grab bar for optimal operator control. The integrated track mechanism ensures stable movement on stairs, while the additional wheels allow use on flat surfaces.

Powered by a rechargeable lithium-ion battery and a strong electric motor, it delivers consistent and reliable performance. Additional features such as LED lighting and LCD display enhance usability in low-visibility or emergency conditions.

Positioned as a premium emergency evacuation solution, this stair climbing system is essential for ambulances, hospitals, civil protection units, and rescue teams handling wheelchair-bound patients.

SPECIFICATIONS

• Product Type: Electric Stair Climbing Wheelchair Carrier
• Model / SKU: 0807109
• Frame Material: Aluminum
• Maximum Load Capacity: 200 kg
• Motor: 24V / 200W
• Battery: 24V / 13Ah lithium-ion
• Charger: 29.4V / 2A
• Power Supply: AC 100–240V, 50/60Hz
• Track Speed: 3 – 8 m/min
• Display: LCD control panel
• Lighting: LED light for low visibility conditions
• Dimensions (Open): 109 × 60.6 × 55–68 cm
• Dimensions (Closed): 109 × 45 × 30 cm
• Carton Dimensions: 117 × 51 × 40 cm
• Weight:
  • Net: 36 kg
  • Gross: 48 kg
• Adjustability:
  • Grab bar height: 110 – 165 cm (3 positions)
  • Wheelchair width compatibility: 40 – 80 cm
• Features:
  • Motorized stair climbing system
  • Special tracks for safe stair transport
  • Foldable and lightweight design
  • Four wear-resistant wheels
  • Adjustable grab handle
  • Compatible with most wheelchairs
• Applications:
  • Emergency evacuation
  • Stair transport of wheelchair users
  • Ambulance operations
  • Hospital patient transfer
  • Rescue and civil protection
• Intended Environment:
  • Hospitals
  • Ambulances
  • Emergency services
  • Rescue teams
  • Public facilities
• Usage Requirement:
  • To be used only by trained personnel
• Warranty: 2 years
