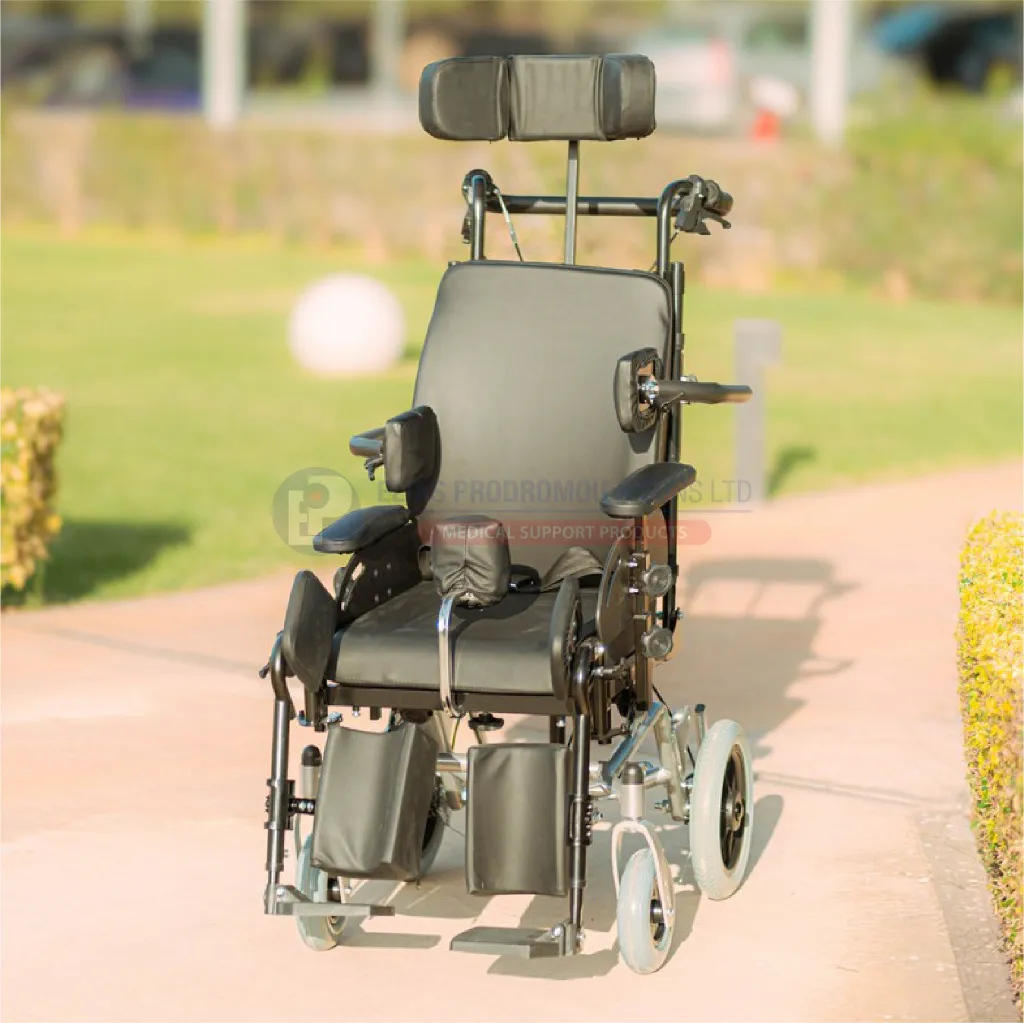

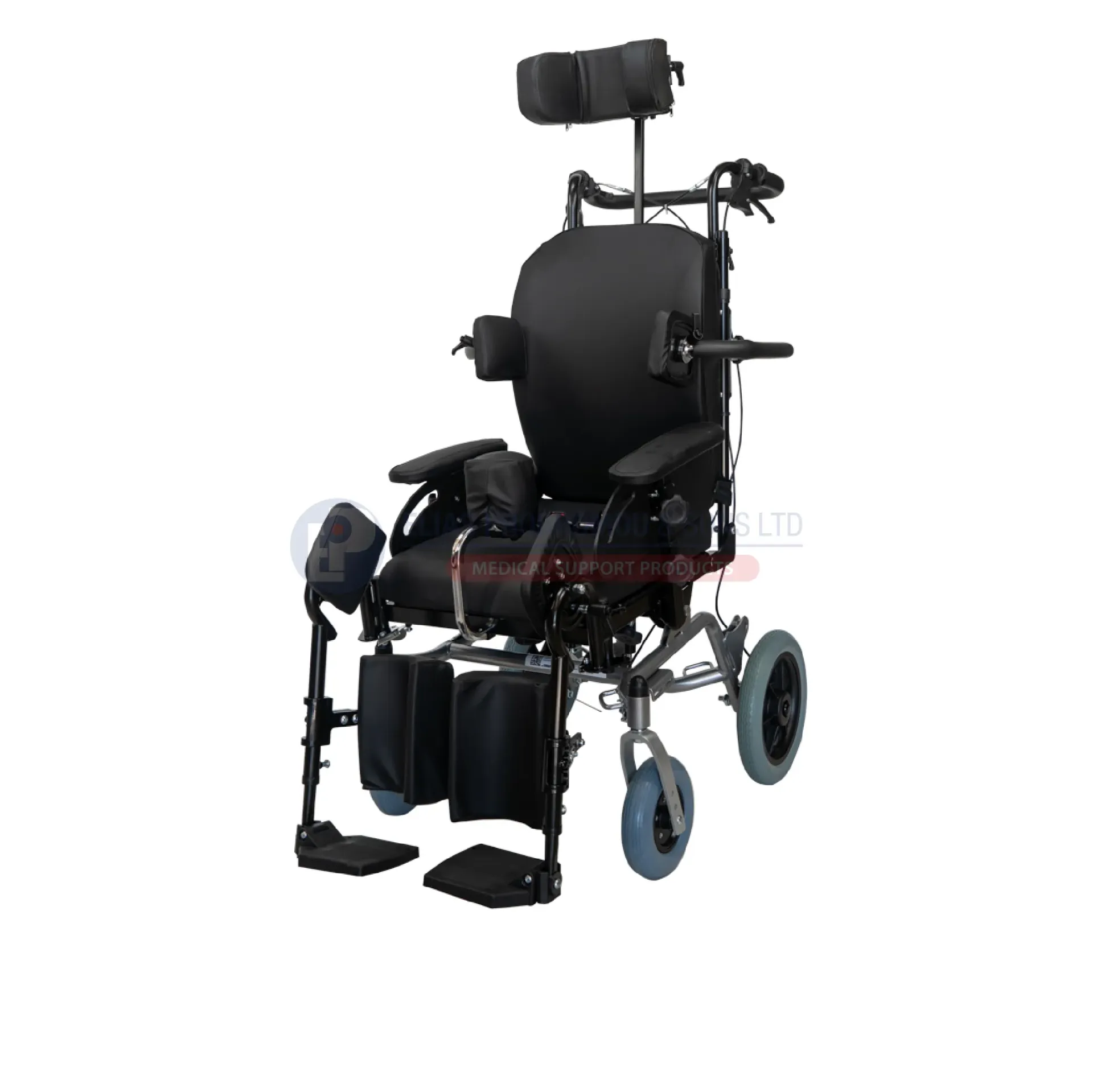

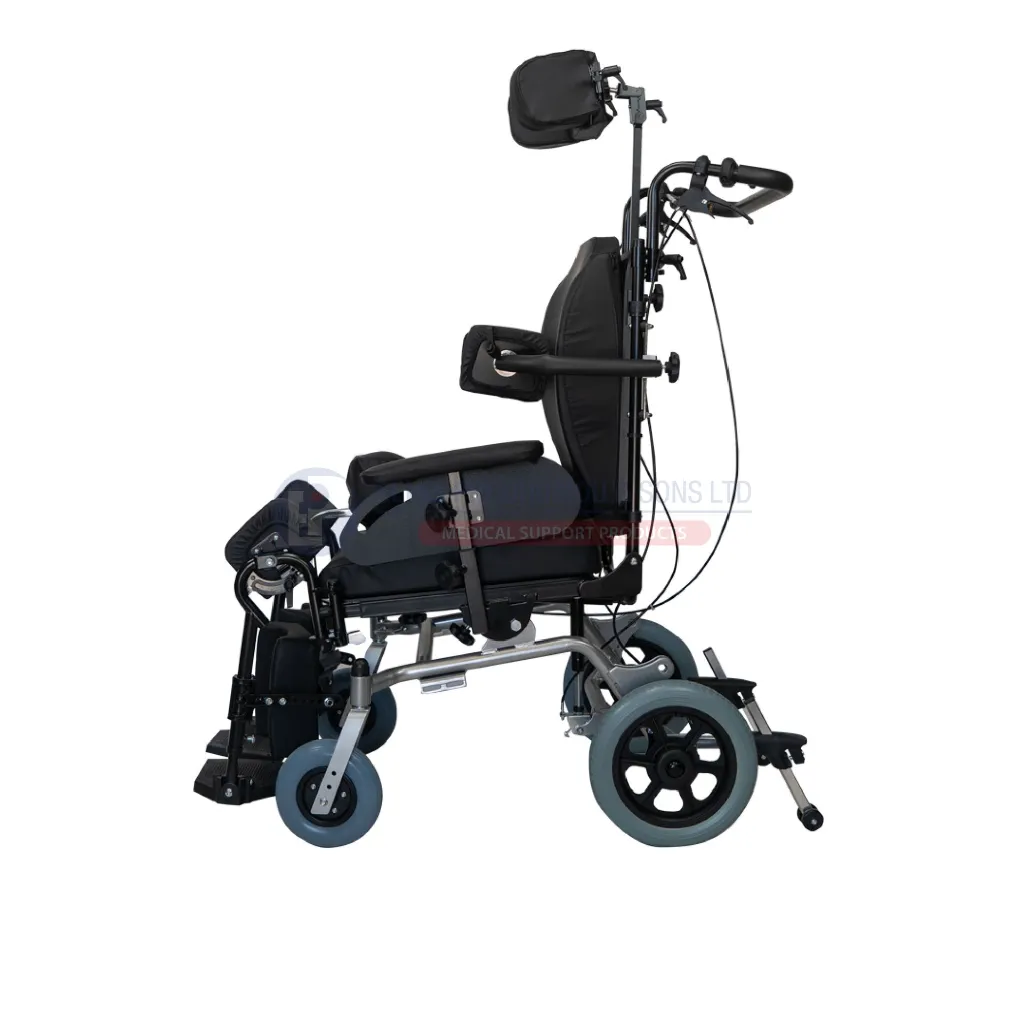

The Mobiak Dione II Reclining Wheelchair (Model 0803401) is a specialized medical wheelchair designed for users who require advanced positioning, ergonomic support, and clinical-level mobility assistance. Built with a durable steel frame, it offers exceptional stability and long-term reliability in demanding healthcare environments.

This model features a reclining backrest adjustable from 95° to 145° and a seat tilt system from 0° to 32°, enabling precise positioning for pressure relief, posture correction, and patient comfort. These functions make it ideal for neurological patients, rehabilitation use, and long-term care.

The ergonomic seat with adjustable depth and PU foam upholstery with nylon lining provide superior comfort during prolonged use. The wheelchair includes a full set of adjustable supports, including headrest, armrests, side panels, thoracic support, knee support, and leg divider, allowing full customization to the patient’s needs.

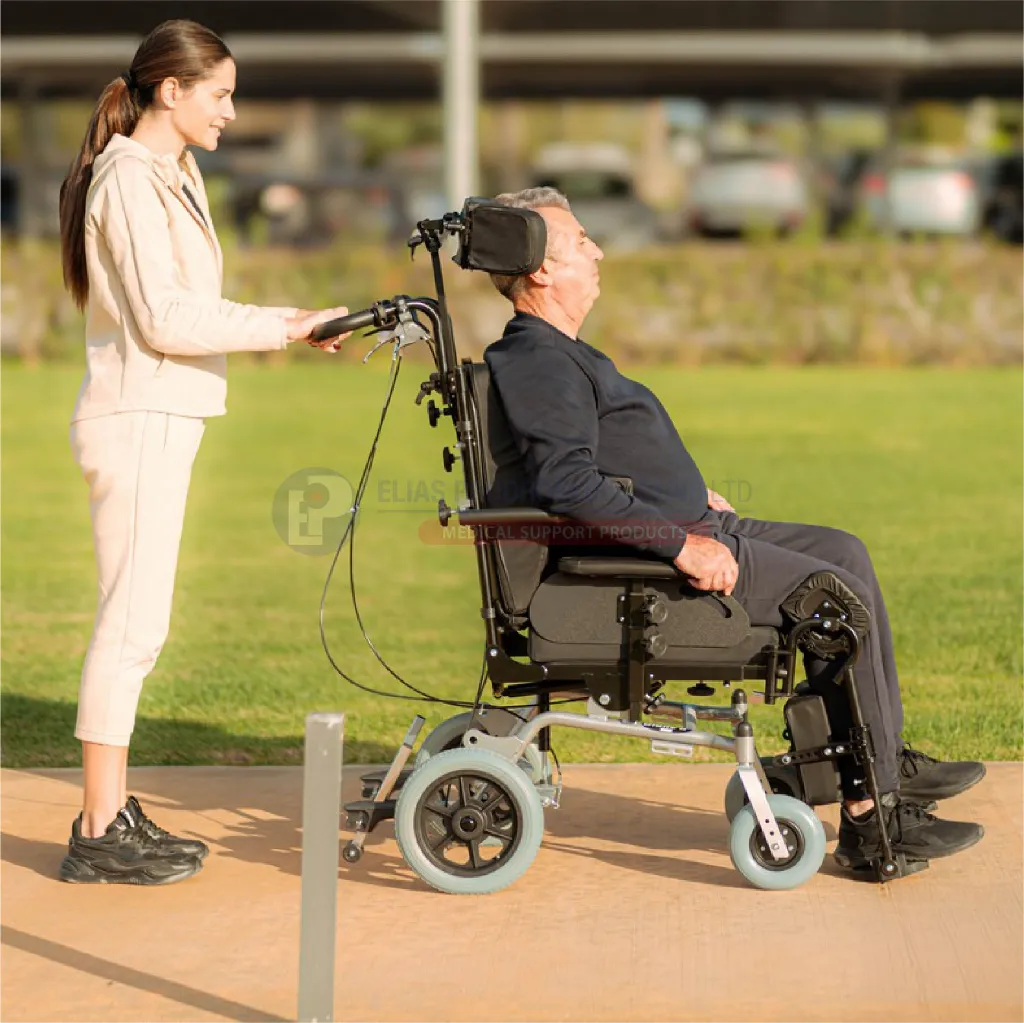

Equipped with 12” rear wheels with quick release and 8” solid front wheels, the Dione II is optimized for controlled mobility and caregiver-assisted use, making it highly suitable for indoor and mixed environments. Additional safety features such as anti-tip wheels, attendant brakes, and safety belt ensure maximum protection.

Positioned as a premium clinical reclining wheelchair, the Dione II is widely used in hospitals, rehabilitation centers, nursing homes, and homecare, delivering advanced functionality, safety, and adaptability for complex patient needs.

SPECIFICATIONS

Usage & Application

• Designed for patients with advanced mobility limitations
• Suitable for rehabilitation, neurological conditions, long-term care
• Ideal for hospitals, clinics, nursing homes, homecare

Frame & Build

• Material: Steel
• Structure: Reinforced medical-grade frame

Seating & Support

• Seat width: 40 cm
• Seat depth: Adjustable (49.5–51.5 cm)
• Backrest height: Adjustable (52.5–59 cm)
• Upholstery: PU foam with nylon lining
• Armrests: Adjustable height & width

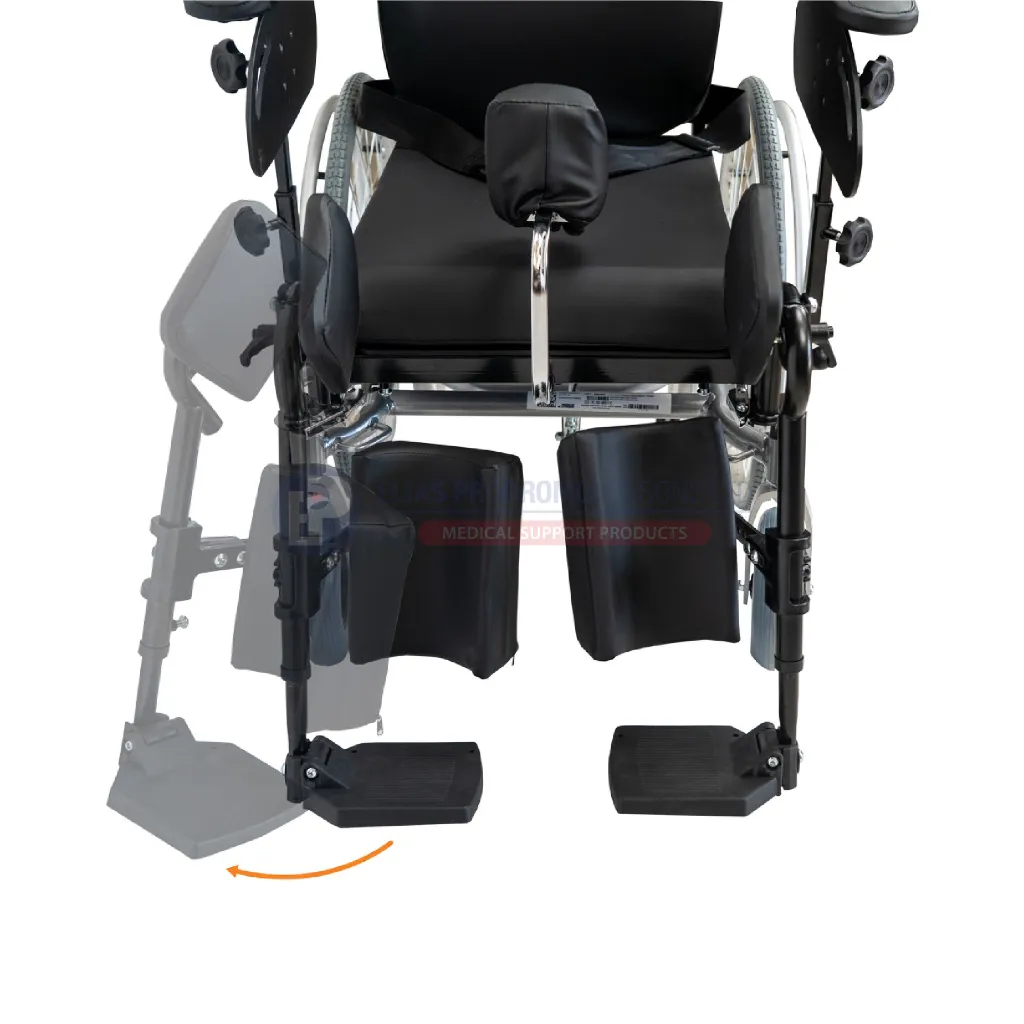

• Footrests: Detachable, elevating, adjustable length

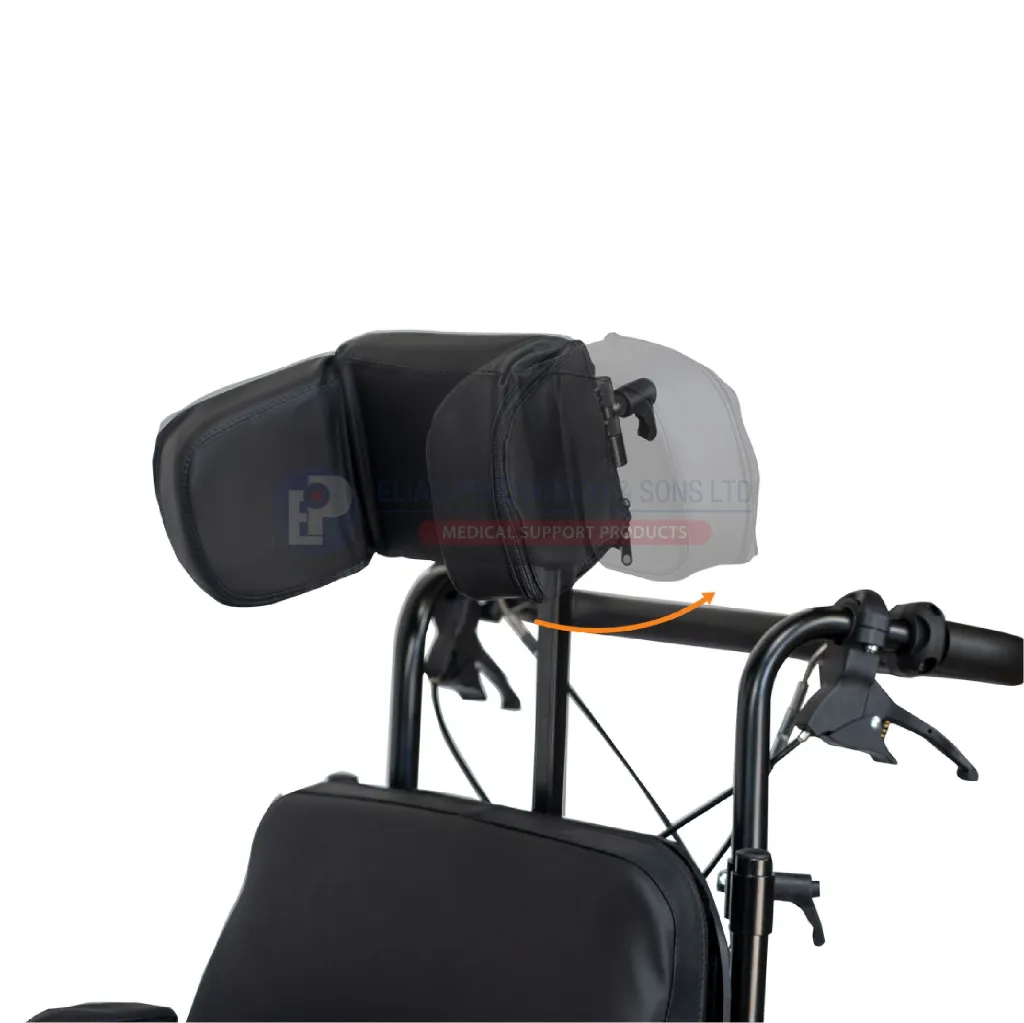

• Headrest: Adjustable (height, width, angle)
• Additional supports:
  • Thoracic support
  • Knee support (rotating, adjustable)
  • Leg divider

Positioning System

• Reclining backrest: 95° – 145°
• Seat tilt: 0° – 32°

Wheels

• Rear wheels: 12” solid / pneumatic with quick release
• Front wheels: 8” x 2” solid (200x50mm)

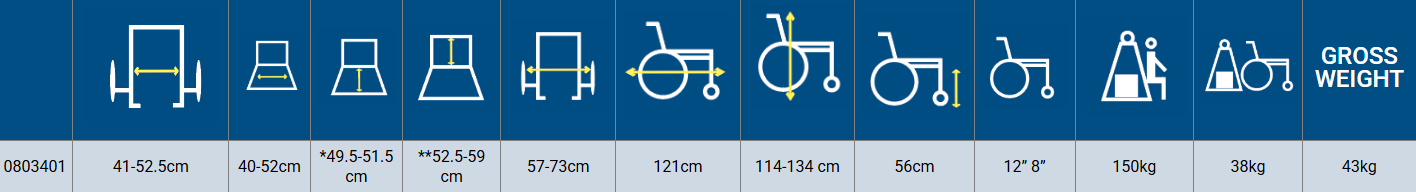

Dimensions & Weight

• Total width: 56–72 cm
• Total length: approx. 121 cm
• Total height: 114–134 cm (with headrest)
• Product weight: approx. 38–43 kg

Performance

• Maximum user weight: 150 kg

Additional Features

• Anti-tip wheels
• Attendant handle & brakes

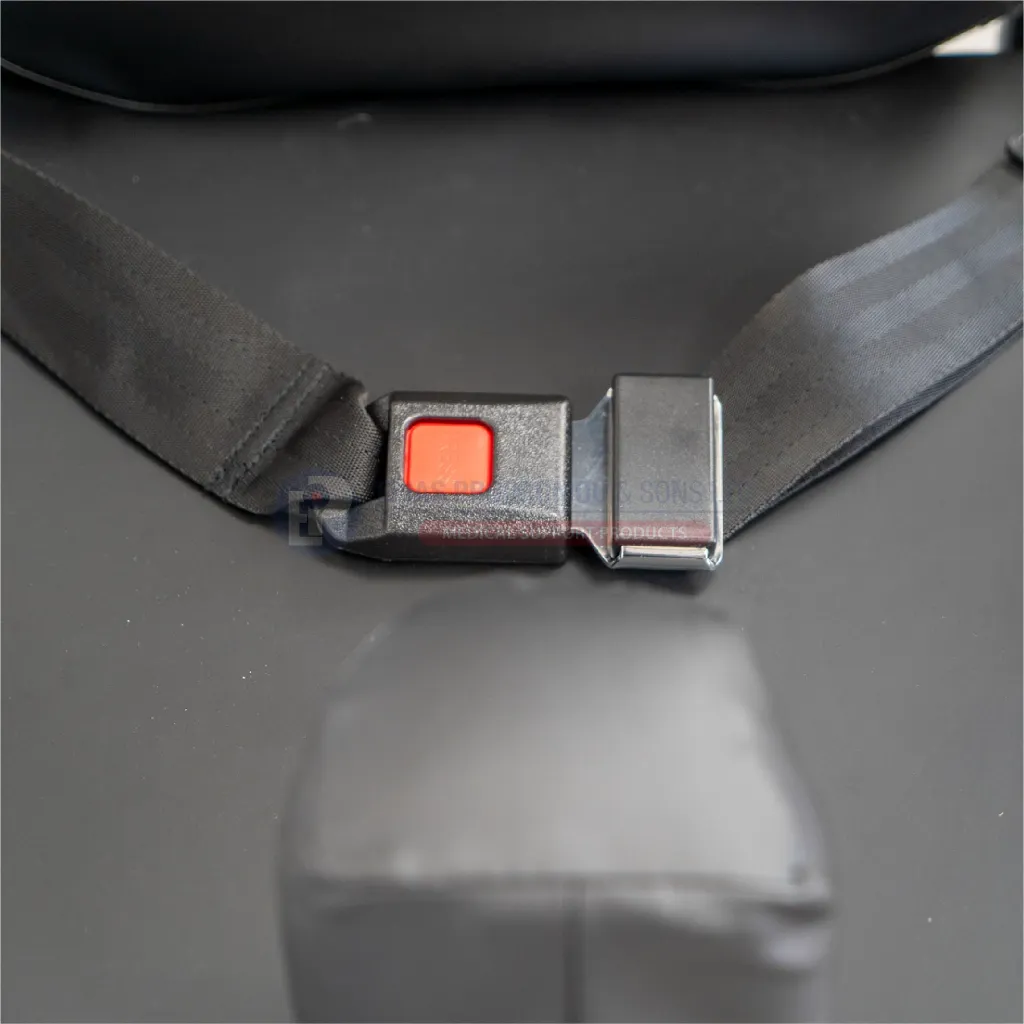

• Safety belt
• Ergonomic adjustable system for clinical positioning

Compliance & Warranty

• MDR Class I Medical Device (category-based)
• Warranty: 2 years
